TASC 2021-01 | A Fresh Look At Short-Term Patterns (Kaufman)

RSS

Traders' Tip text

The Wealth-Lab Strategy code for the short-term pattern scanner by Perry J. Kaufman is presented below. With 'parameter sliders' at the bottom left of your Wealth-Lab workspace, included Strategy demonstrates how to switch between the patterns interactively when viewing a chart. Dragging the 'Pattern' slider to the left or to the right will change between the six choices and make the chart update with backtested trades.

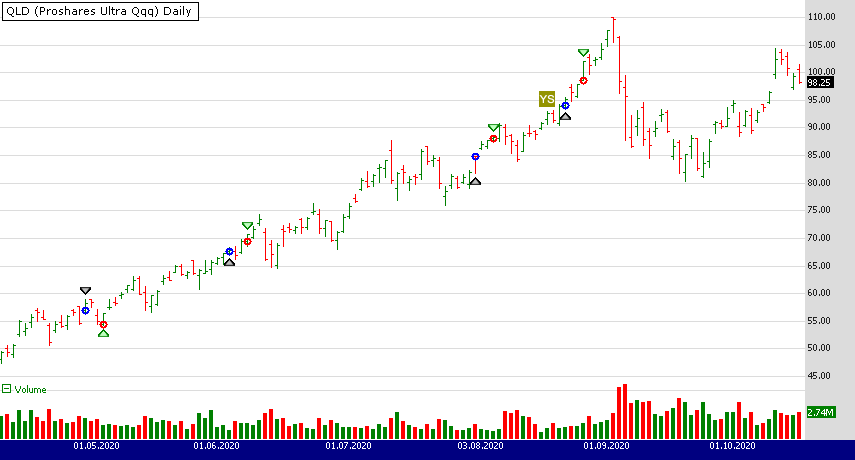

Figure 1. Sample entries on a Daily chart of QLD. Data provided by Yahoo! Finance.


For example, Figure 1 illustrates a bearish and two bullish key reversal trades created on the next open following the pattern and exiting 3 days after. Through another parameter slider you can control exits after N bars in a trade.

To avoid copy/paste, hitting Ctrl-O and choosing “Download…” in Wealth-Lab gets you the downloadable Strategy under the “Chart patterns” folder.

WealthScript Code (C#)

using System;
using System.Collections.Generic;
using System.Text;
using System.Drawing;
using WealthLab;
using WealthLab.Indicators;
using Community.Components;

namespace WealthLab.Strategies { public class TASCJan2021 : WealthScript { private StrategyParameter paramPattern; private StrategyParameter paramExitDays;

public TASCJan2021() { paramPattern = CreateParameter("Pattern", 1, 1, 6, 1); paramExitDays = CreateParameter("Exit after", 3, 1, 10, 1); }

protected override void Execute() { var _pattern = paramPattern.ValueInt; var _exitAfter = paramExitDays.ValueInt; int atrPeriod = 20, maPeriod = 80; double tick = Bars.SymbolInfo.Tick; var atr = ATR.Series(Bars, atrPeriod); var trendFilter = SMA.Series(Close, maPeriod); for(int bar = GetTradingLoopStartBar(Math.Max(atrPeriod,maPeriod)); bar < Bars.Count; bar++) { //key reversal bool keyRevBear = High[bar] > High[bar - 1] && Low[bar] < Low[bar - 1] && Close[bar] < Low[bar - 1]; bool keyRevBull = High[bar] > High[bar - 1] && Low[bar] < Low[bar - 1] && Close[bar] > High[bar - 1];

//island reversal bool islRevBear = Low[bar] > High[bar - 1] && Close[bar] < Open[bar]; bool islRevBull = High[bar] < Low[bar - 1] && Close[bar] > Open[bar];

//outside day bool outsideBull = this.isOutsideBar(bar) && Close[bar] > Low[bar] + ( 0.75 * (High[bar] - Low[bar])); bool outsideBear = this.isOutsideBar(bar) && Close[bar] < Low[bar] + ( 0.25 * (High[bar] - Low[bar]));

//wide range day var ratio = TrueRange.Series(Bars)[bar] / atr[bar]; bool isWRBBull = outsideBull && (ratio > 1.5); bool isWRBBear = outsideBear && (ratio > 1.5);

//3-day compression bool compression = CumDown.Series(TrueRange.Series(Bars), 1)[bar] >= 3;

//gap open bool isGapUp = (this.isGap(bar) == CommonSignalsEx.GapType.FullUp) && (Open[bar] > Close[bar] + 0.5 * atr[bar]); bool isGapDown = (this.isGap(bar) == CommonSignalsEx.GapType.FullDown) && (Open[bar] < Close[bar] + 0.5 * atr[bar]);

//trend filter bool isBullish = Close[bar] > trendFilter[bar]; bool isBearish = Close[bar] < trendFilter[bar]; if (IsLastPositionActive) { /* Exit after N days */ Position p = LastPosition; if (bar + 1 - p.EntryBar >= _exitAfter) ExitAtMarket(bar + 1, p, string.Format("After {0}", _exitAfter)); } else { switch (_pattern) { case 1: if( keyRevBear && isBearish) ShortAtMarket(bar + 1, "KeyRevBear"); if( keyRevBull && isBullish) BuyAtMarket(bar + 1, "KeyRevBull"); break; case 2: if (islRevBear && isBearish) ShortAtMarket(bar + 1, "IslRevBear"); if (islRevBull && isBullish) BuyAtMarket(bar + 1, "IslRevBull"); break; case 3: if (outsideBear && isBearish) ShortAtMarket(bar + 1, "OutsideBear"); if (outsideBull && isBullish) BuyAtMarket(bar + 1, "OutsideBull"); break; case 4: if (isWRBBear && isBearish) ShortAtMarket(bar + 1, "WRBBear"); if (isWRBBull && isBullish) BuyAtMarket(bar + 1, "WRBBull"); break; case 5: if (compression) { if(BuyAtStop(bar+1, Highest.Series(High,3)[bar], "CompressionBull") ==null) ShortAtStop(bar + 1, Lowest.Series(Low, 3)[bar], "CompressionBear"); } break; case 6: if (isGapUp && isBullish) BuyAtClose(bar, "GapUp"); if (isGapDown && isBearish) ShortAtClose(bar, "GapDown"); break; default: break; } } } } } }

Gene Geren (Eugene)
Wealth-Lab team
