Contribution pie chart

RSS
This Performance Visualizer shows a breakdown of total profit or loss in multi-symbol backtests:

  1. On a per instrument basis (default)
  2. By entry signal name
  3. By exit signal name
  4. By calendar month
  5. By average % P/L per bar

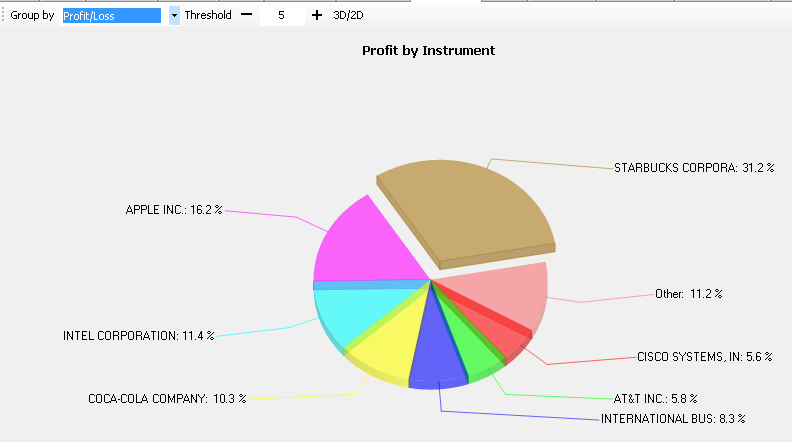

To switch views, choose from the "Group by" dropdown box:

Contribution

Contribution


Chart title will display "profit"/"loss" depending on portfolio outcome.

Largest winner/loser is highlighted by displacing its segment. If the number of portfolio winners/losers exceeds a certain threshold, those symbols that fall off "Top-N" will get their results summed and grouped into a separate segment called "Other". To avoid clutter when testing large portfolios, the threshold is made configurable interactively on the visualizer's menu bar.

Notes

  • To benefit from grouping by entry/exit name, your Strategy must assign meaningful entry and/or exit signals.
  • If security name is available, it will be displayed in the symbol's legend, otherwise symbol name will be shown.
  • The chart has a 3D look by default, and can be switched to 2D view by clicking the "3D>2D" button.
  • Tooltips display symbol name and profit/loss.
