WealthSignals Publisher

Modified on 2017/05/26 10:06 by Eugene — Categorized as: Misc

What is WealthSignals?

WealthSignals (WS) is the Wealth-Lab.com community's new Trading System Subscriber Network.  It also includes a sandbox area where you can do your paper trading (virtual trading) and hone your trading system development skills for free. WS provides up to the minute hypothetical performance reporting from quality data streams.

Right now, developers can easily upload End Of Day trading alerts and start establishing a public record of forward trading from their licensed Wealth-Lab Developer/Pro software with our WealthSignals Publisher extension. Then subscribers can pay you a monthly fee to get your published WealthSignals.

What is a WealthSignals Trading System?

WealthSignals participation begins with registering to Wealth-Lab.com and submitting our Post-a-system form in order to create your WealthSignals Trading System (WSTS). You then upload data from a Strategy that you've developed on your Wealth-Lab client software thus making your WSTS an outward reflection of that strategy.

If you make your WSTS public, then all Wealth-Lab.com users will have the ability to view a restricted set of its performance data and description information but not its alerts or open positions.  The daily alerts and opens position data is reserved for subscribers only.

Your WealthSignals Trading System becomes a public record of forward trading, while you maintain complete control and privacy of the code which never leaves your desktop.

There are two main benefits:

What is the WealthSignals Publisher?

The WealthSignals Publisher (WSP) is a tool that system authors can use to upload backtest performance data and Alerts to WealthSignals accounts. With the WSP, any Strategy that generates Alerts...

...can submit them from Wealth-Lab Pro/Developer to your WealthSignals account in a convenient way. Placing discretionary signals is supported too.

The WSP in a “one-way street”: while its purpose consists of uploading backtests and daily Alerts to WealthSignals, it doesn't provide any feedback on order execution. The WealthSignals website will provide hypothetical order execution and tracking with up to the minute performance reports.

Setting up

First and foremost, installing the WealthSignal Publisher library (or update to its most-recent version if exists) is a prerequisite to using the WSP. After restarting Wealth-Lab, open the Preferences dialog (hit F12) and check “WealthSignals”:

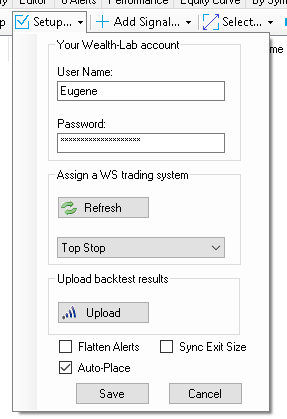

To configure the WS Publisher, open a Strategy window, perform a backtest, switch to "WealthSignals" tab, and click on “Setup...” to display this dropdown menu.
In the first place, enter your Wealth-Lab.com username and password in the respective fields. Once entered, your credentials will be used for authentication until you change the password on the website. They are required at all times to communicate with the WealthSignals website. Your password is securely stored in a disk file (see Technical Background below).
Another required one-time action is requesting (or re-requesting, if it has been changed) the list of WS accounts which you created on our website. Clicking “Refresh” will populate the dropdown list below with your existing accounts, allowing to link Strategies with WS accounts (read on below). These settings will apply to all Strategy windows that you open.
Finally, "Flatten Alerts" combines the multiple orders into one (see dedicated section below).

Link Strategy to WealthSignals TS

It's necessary to log in to Wealth-Lab.com and use the Post-a-System page before linking to it:

Before Alerts can be transmitted to an existing WealthSignals TS, a Strategy must be linked to it. This is done from the already familiar Setup menu.

If you changed your mind for some reason, don't worry: any WSTS previously assigned to a Strategy can be linked with a different Strategy. To attach to a different account, follow these steps:

  1. Close all open Strategy windows (recommended)
  2. Open a new window for the Strategy you want to assign to a different WSTS

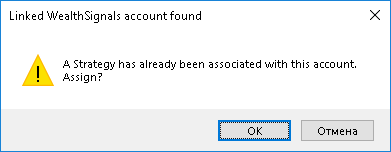

  3. Pick up the new TS and confirm the dialog message box:


Upload Historical Results

Now that a WSTS has been associated with the Strategy, you might want to upload its historical backtest results. By showcasing a system's historical results to your potential subscribers, you as the author demonstrate that you have performed system testing. Additionally, the system’s description is enhanced with the equity curve, trade history and performance metrics without the need for you to provide information “off site”.

If you click on “Upload”, the Strategy's equity curve data and trade history will be sent to your WSTS. You would do it only once per Strategy, if results have not already been uploaded before. When trades in this WSTS have been filled, you won't be allowed to overwrite prior results: the system has just started its forward trading track!

Note: As Raw Profit mode isn't supported, you will be prompted to switch to Portfolio Simulation mode before uploading.

Working with Signals (Alerts)

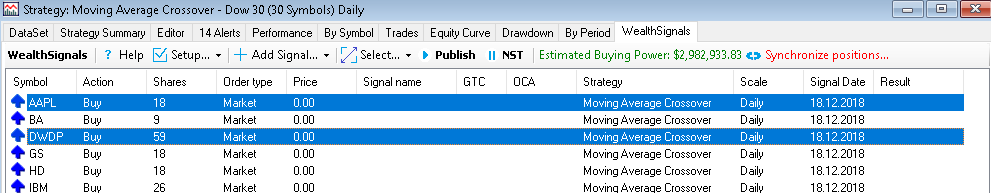

Through its multi-select list view, the WSP provides the ability to display and edit Alerts generated by your Strategy, enter and edit discretionary Signals, and submit them to your WealthSignals trading system:


After running a Strategy, all trading Alerts to be placed for the next bar will appear in the WealthSignals view. In addition, the WSP requests the actual Cash value of the trading system. The list is automatically refreshed each time the Strategy is executed, clearing all existing WealthSignals: original Strategy's Alerts, manually entered (discretionary) Signals, and edited Alerts alike.

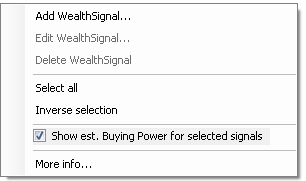

If the respective option is enabled in the right-click context menu, the menu bar will show estimated buying power in the account after staging selected signals (exceptions: manually added AtMarket signals and Strategies that loop by DataSetSymbols e.g. all symbol rotation strategies).

As the list of symbols supported by WealthSignals changes over time, starting from v2016.10 the WSP will highlight signals in now unsupported symbols in gray. This should give author a heads-up on that he has to make adjustments to his WS DataSet.

How-To: Add a Discretionary Signal

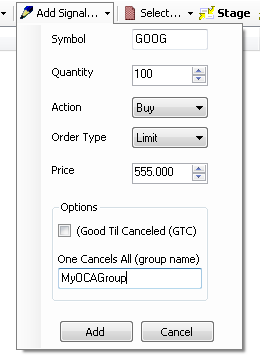

Users can add discretionary Signals if they choose “Add WealthSignal...” from the context menu or on the toolbar:


How-To: Edit a Signal

Your TS's existing WealthSignals can be edited, if you want to tweak them for whatever reason or attach an extra condition. This is accomplished by choosing “Edit WealthSignal...” from the context menu or on the toolbar, or by double-clicking on a Signal in the list view.

A dialog will be launched to allow you to change the Signal's properties.

For both added (discretionary) and edited Signals, these properties are editable: Symbol, Shares, Order Type, Price (except AtMarket and AtClose Signals), Action. The Strategy, Scale and Date columns are provided for indicative purposes only.


The WS Publisher supports all order types available within Wealth-Lab: Buy, Sell, Short, and Cover. Each order can be either AtMarket, AtLimit, or AtStop. AtClose orders are currently not supported. If your system generated an AtClose order, it will be displayed and highlighted in orange, but before being able to transmit it into your WealthSignals Trading System, you should convert it into a supported order type first (see How-To: Edit a Signal).

The following extra conditions can be attached to any Wealth-Signal via manual modification:

Submitting Signals through the WSP

Signals must be manually selected before staging, placing or deleting them. Use the Ctrl and Shift combinations with the mouse for multiple selections. Multiple Signals can be selected by highlighting them. Additionally, from the Select... dropdown on the Toolbar you can select all Signals or invert an existing selection.

Note: in initial release of WealthSignals, signals will always be staged and then auto-published 15 minutes after "staging complete". This intends to provide the author 15 minutes to catch errors without the need of an additional set of orders, before they are sent to the subscribers. Publishing additional signals or submitting NST during the 15-minute grace period, restarts the grace period. One exception: after 09:00 AM ET time, signals will be auto-published to subscribers immediately.

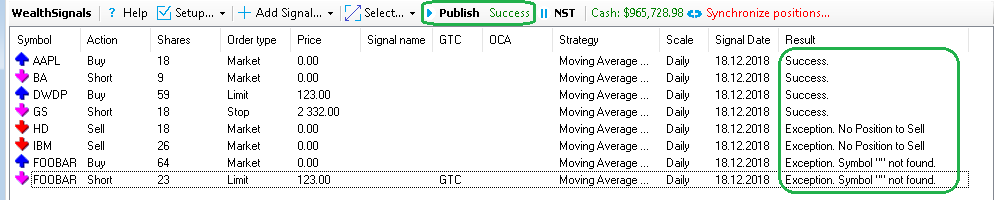

When you stage or place Signal(s), the Publisher will attempt send them to the website:


The message displayed next to the "Stage" button indicates the general operation status i.e. successful, login failed, exception etc.

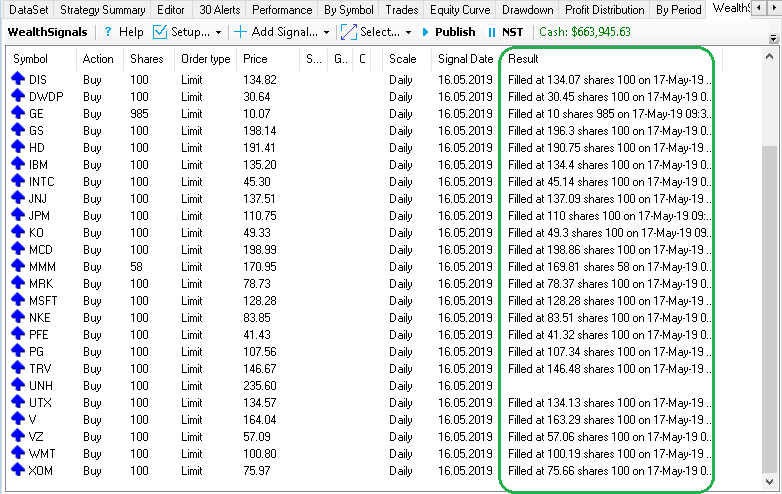

The Result column shows individual signal upload status – i.e. was the Signal successfully sent or there was an error of some sort (network issue, login failed due to incorrect password, signal rejected by server etc.) As instances of same Strategy in different windows are independent, be careful not to submit a duplicate order unintentionally.

After entering signal(s), the Publisher's work is finished. A Signal's status can be tracked on the WealthSignals website.

Duplicate signal check

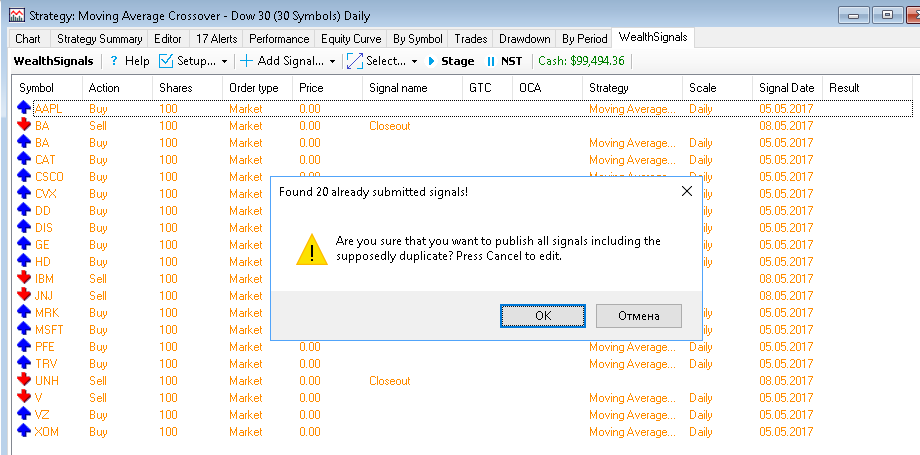

To err is human, and authors sometimes can post duplicate signals on the same day without realizing it. Starting from v2017.06, the WSP will warn you on posting a set of exactly duplicate signals when you re-open the Strategy window with a dialog prompt and then by highlighting the duplicates in orange:


No Signals Today

When their system has not produced an Alert for the next trading session (before 9:25 EST: today, after: next trading day), authors must post a No Signals Today notice (NST). The WSP allows to claim NST status for the next trading day for the system by clicking on the "NST" icon (pause icon) on the toolbar. Posting a NST notice cancels all placed and staged orders. Note that placing signals will not succeed if author has already declared NST for next trading session.

Flatten Alerts

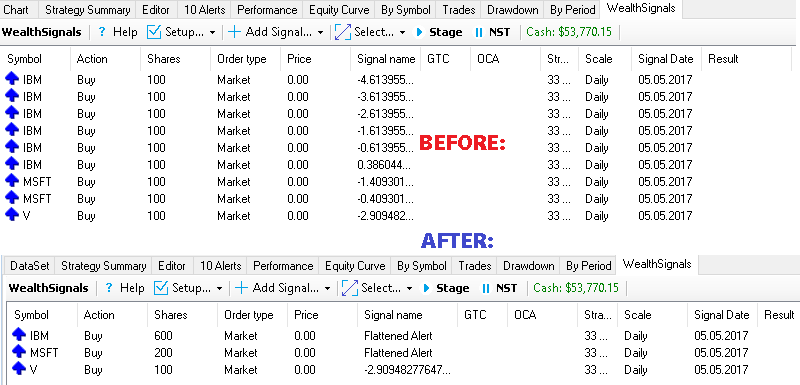

When trading systems that take multiple positions in the same symbol, you might want to avoid placing multiple orders and combine the position shares manually. When activated, "Flatten Alerts" does just that: combines Positions (independently for entries or exits) that have the same Strategy, Symbol, Action (Buy, Sell, Short...), Order Type (Market, Limit...), Price, Scale, and Signal Date.


This feature has been introduced in v2017.06 and requires you to reopen the Strategy window to apply. Note: since this is a global preference, it applies to every Strategy.


Orphaned positions

As time goes by it's possible that you have an occasional "orphaned Position", which is either a Position that you're holding in a WealthSignals account that your Strategy is not aware of, or vice versa:

The most popular reasons are:

  1. Limit and stop order rounding vs. setting used in Wealth-Lab
  2. Failure to assign a Position priority in your Strategy:
  3. Data
    • Signal entered using stale data (symbol missed an update, or user forgot to update DataSet)
    • Modifying the DataSet composition
    • A dividend adjustment applied to data while holding a live position. The condition to enter a trade may exist prior to a diviend adjustment in the data, but the same condition may not trigger after the adjustment. More: Orphaned Positions: Dividend -adjustment effects
    • Loading "Fixed N bars" might alter historical trades, making old trades disappear and hence affect more recent trades (depends on system logic)
  4. Buying power (margin) / TOS execution order. More: Margin Exhaustion Behavior
  5. Operator error: mistakenly sending some signal(s) twice

It's advised that authors assign a priority to positions, pay attention to divivends in dividend-adjusted data, and preferably use Raw Profit mode for keeping in sync with WSTS.

Starting from version 2013.05, the WealthSignals Publisher detects both types of orphaned positions and notifies author, displaying a warning label on its toolbar and highlighting "stale" exit orders in red. The number of orphaned positions in WealthSignals and/or Wealth-Lab Strategy is provided in tooltip message that appears after mousing over the "broken link" icon. Clicking on it will result in the following actions:

  1. Stale exit orders (highlighted in red) will be removed from the queue.
  2. For orphaned positions, new exit orders will be inserted to liquidate the entire position in the symbol. Each one is highlighted in blue and marked as "Closeout".

The idea is that authors review the proposed changes before sending their daily signals (or claiming NST). Before liquidating orphaned positions, authors should understand/investigate why they have an orphaned position to begin with.

On a closing note, there's a special case that authors should be aware of: different position size between a WealthSignals position and its counterpart in Wealth-Lab Strategy. The WSP is not able to detect this scenario because it's very similar to making a partial exit which is perfectly valid.

Technical background

Your trading system code never leaves your PC. The WSP does not upload a Strategy's code anywhere.

The WSP stores its preferences in two XML files located in user's AppData directory (see the Wealth-Lab User Guide > Data > “Where data are stored?” for the exact placement):

The username and password are required for any WealthSignals task such as requesting the list of WealthSignals Trading Systems you have created on the website, uploading backtest performance results to a W-S account, and every time you stage or place Signals.

Although the XML files are editable, it is not recommended to mangle with them in an editor unless you have a good reason. Should something go wrong, you can start from scratch by closing all open Strategy windows and deleting the XML files, even while Wealth-Lab is running.

Issues and limitations




Portions © Luis Alonso Ramos - MultiColumnSortManager and Eddie Velasquez - ListViewSortManager

MultiColumnSortManager was modified to suit Wealth-Lab's SystemPerformance output on open trades.
