TASC 2008-07 | Leader Of The MACD (Siligardos)

RSS

Traders' Tip text

Programming "complex" divergences in Wealth-Lab 6 is not complex and can be accomplished in different ways (for example, see February Traders' Tip "Trading Divergences"). Here we present an alternative approach that identifies a divergence between price and the "Leader of the MACD" when it fails to confirm a highest high, in its turn, creating a lower peak. (To save space, the rules are for short trades but reversing them is pretty easy.)

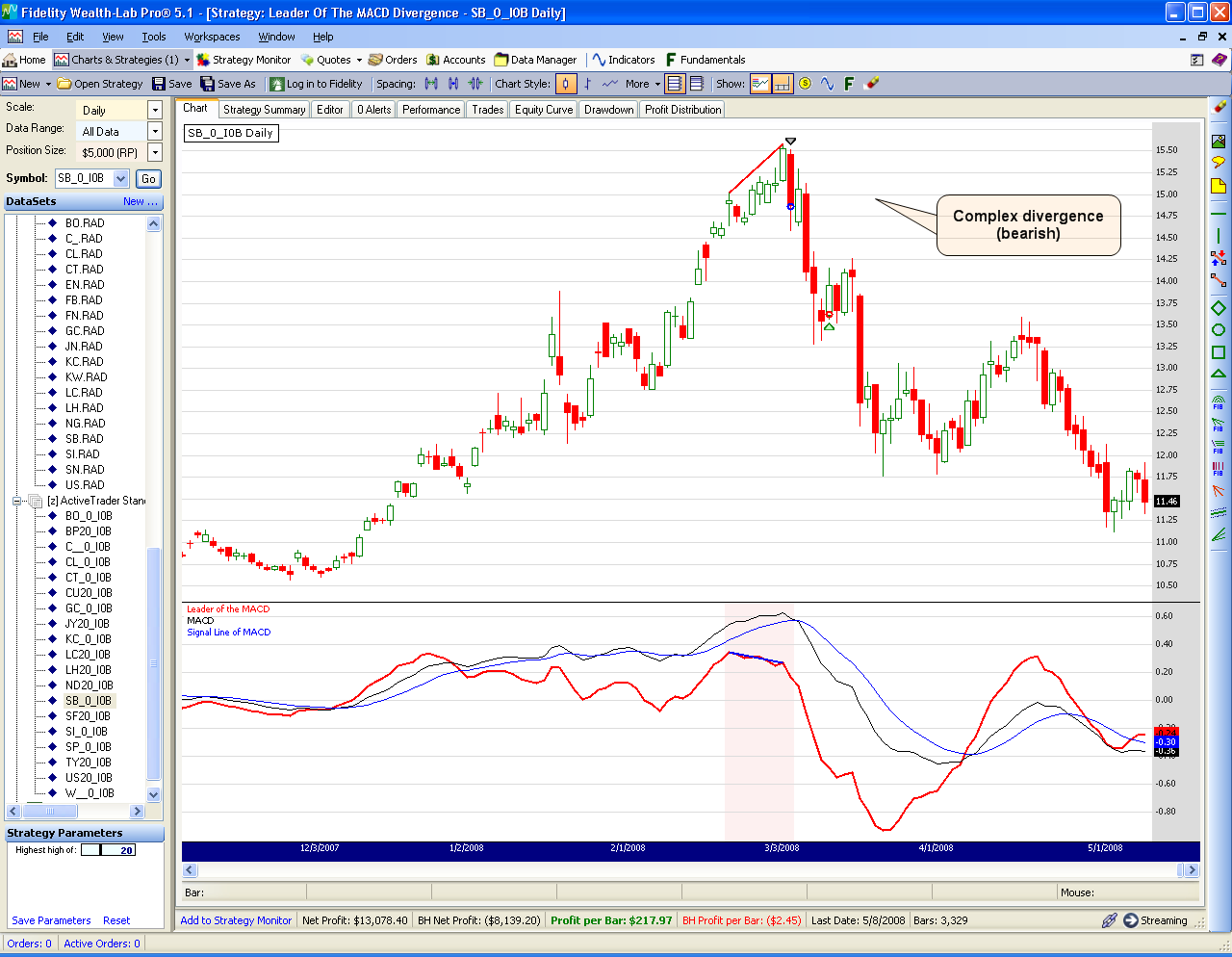

Figure 1. Illustrating on a short trade in Sugar futures, the "Leader of the MACD" helps spot a complex bearish divergence.

Strategy Code


using System;
using System.Collections.Generic;
using System.Text;
using System.Drawing;
using WealthLab;
using WealthLab.Indicators;

namespace WealthLab.Strategies { public class LeaderOfMACD : DataSeries { public LeaderOfMACD ( Bars bars ) : base(bars,"Leader of the MACD") { EMACalculation cm = EMACalculation.Modern; EMA ema12 = EMA.Series( bars.Close, 12, cm ); EMA ema26 = EMA.Series( bars.Close, 26, cm ); DataSeries Indicator1 = ema12 + EMA.Series( bars.Close - ema12, 12, cm ); DataSeries Indicator2 = ema26 + EMA.Series( bars.Close - ema26, 26, cm );

for (int bar = FirstValidValue; bar < bars.Count; bar++) this[bar] = Indicator1[bar] - Indicator2[bar]; } public static LeaderOfMACD Series( Bars bars ) { LeaderOfMACD _LeaderOfMACD = new LeaderOfMACD( bars ); return _LeaderOfMACD; } }

/* Leader of the MACD divergence: Price sets a highest high but the indicator fails to confirm the new high and turns down */ public class Leader_Divergence : WealthScript { private StrategyParameter paramHighest; public Leader_Divergence() { paramHighest = CreateParameter("Highest high of", 20, 5, 50, 1); } protected override void Execute() { bool peak = false; int peakBar = -1; int high = paramHighest.ValueInt; LeaderOfMACD leader = LeaderOfMACD.Series( Bars ); Highest indicatorHighest = Highest.Series( leader, high ); Highest hHigh = Highest.Series( High, high ); MACD macd = new MACD( Close, "MACD" ); macd.Description = "MACD"; EMA signal = EMA.Series( macd, 9, EMACalculation.Modern ); signal.Description = "Signal Line of MACD"; HideVolume(); LineStyle solid = LineStyle.Solid; ChartPane leaderPane = CreatePane( 50, false, true ); PlotSeries( leaderPane, leader, Color.Red, solid, 2 ); PlotSeries( leaderPane, macd, Color.Black, solid, 1 ); PlotSeries( leaderPane, signal, Color.Blue, solid, 1 );

for(int bar = 80; bar < Bars.Count; bar++) { if (!IsLastPositionActive) { /* 1st peak: both price and indicator */ if( peak == false ) { if( ( High[bar-1] == Highest.Series( High, high )[bar-1] ) & ( leader[bar-1] == Highest.Series( leader, high )[bar-1] ) & TurnDown( bar, High ) & TurnDown( bar, leader ) ) { peak = true; peakBar = bar-1; } } if( peak == true ) { if( ( High[bar] != Highest.Series( High, high )[bar] ) & ( leader[bar] == Highest.Series( leader, high )[bar] ) ) peak = false; }

/* 2nd peak: price high not confirmed by the indicator */

if( peak == true ) { if( ( High[bar-1] == Highest.Series( High, high )[bar-1] ) & ( High[bar-1] >= High[peakBar] ) & ( leader[bar-1] != Highest.Series( leader, high )[bar-1] ) & ( leader[bar-1] < leader[peakBar] ) & TurnDown( bar, High ) & TurnDown( bar, leader ) ) { peak = false; ShortAtClose( bar ); /* Highlight divergence */ for (int b = peakBar; b <= bar; b++) SetPaneBackgroundColor( leaderPane, b, Color.FromArgb( 30, Color.LightCoral ) ); DrawLine( PricePane, peakBar, High[peakBar], bar-1, High[bar-1], Color.Red, solid, 2 ); DrawLine( leaderPane, peakBar, leader[peakBar], bar-1, leader[bar-1], Color.Blue, solid, 2 ); } } } else { /* Exit after 5 days */ Position p = LastPosition; if ( bar+1 - p.EntryBar >= 5 ) CoverAtMarket( bar+1, p, "Timed" ); } } } } }
