# TASC 2008-11 | Corona Charts (Ehlers)

Modified on 2010/09/12 11:26 by Eugene — Categorized as: TASC Traders Tips

Even if you donâ€™t want to use corona charts for trading, your spouse might even be impressed with these colorful charts â€“ mine was! We wrapped the indicator creation and plotting in a tidy SuperIndicators method so that all four indicators can be returned to a Strategy script in a single call. The full translation for Wealth-Lab 6 (.NET) WealthScript can be found in the TASC Tradersâ€™ Tips section at the Wealth-Lab.com Wiki site.

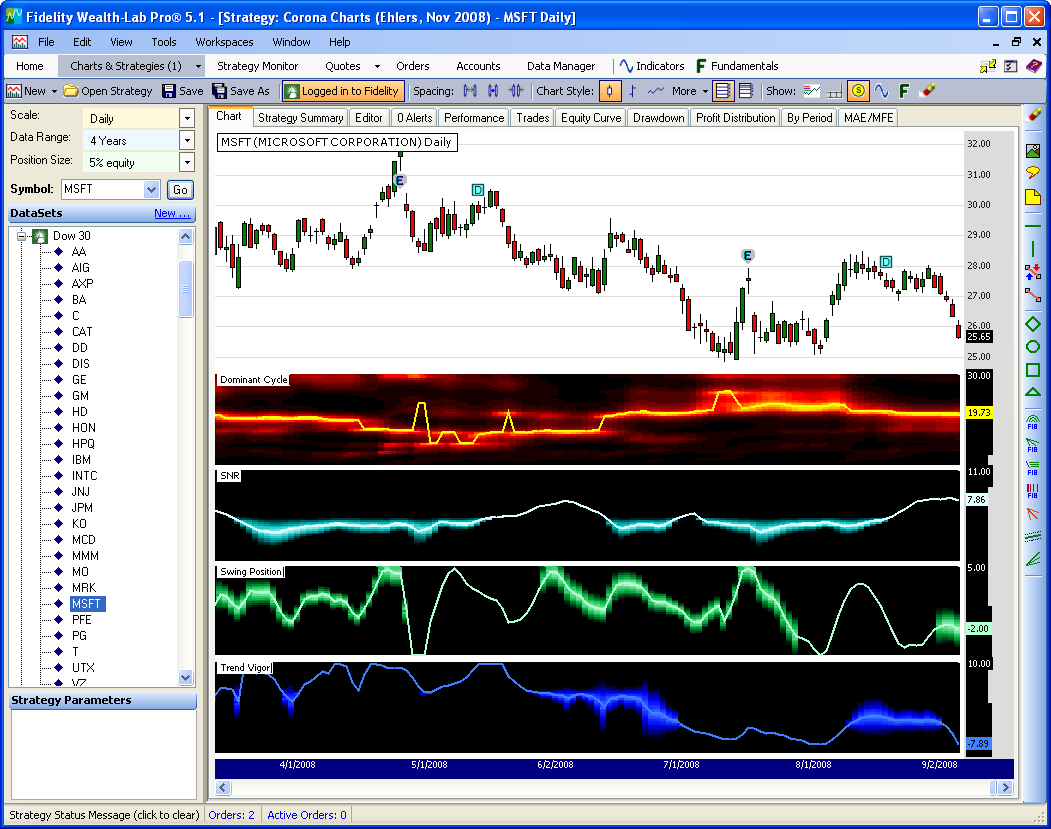

Figure 1. The Trend Vigorâ€™s ominous corona in June provided a good warning that MSFTâ€™s March-April rally had lost its steam.

### Strategy Code

Revised: 20090611
Thanks to Wealth-Lab.com user "htg1", the calculation for the Trend variable used for "Trend Vigor" is now correct. Additionally, the starting loop variable was changed from 12 to 51, and DataSeries initializations have been simplified.

```// WAS:
double Trend = ds[bar] - ds[cycPeriod];
// SHOULD BE (IS):
double Trend = ds[bar] - ds[bar - cycPeriod];```

```/* Strategy Code revised 20090611 */
using System;
using System.Collections;
using System.Collections.Generic;
using System.Text;
using System.Drawing;
using WealthLab;
using WealthLab.Indicators;namespace WealthLab.Strategies
{
public class CoronaCharts : WealthScript
{
public const double twoPi = 2 * Math.PI;
public const double fourPi = 4 * Math.PI;

public class ArrayHolder
{	// current, old, older
internal double I, I2, I3;
internal double Q, Q2, Q3;
internal double R, R2, R3;
internal double Im, Im2, Im3;
internal double A;
internal double dB, dB2;
}

// Keep cntMax fifo samples and find the Highest and Lowest lead for samples in the list
private void PhaseList(ref ArrayList fifo, int cntMax, double lead, out double H, out double L)
{
if( fifo.Count < cntMax )
else {
fifo.RemoveAt(0);
}
for (int n = 0; n < fifo.Count - 1; n++) {
double val = (double)fifo[n];
if( val > H ) H = val;
if( val < L ) L = val;
}
}

public void SuperIndicators(DataSeries ds, out DataSeries domCycMdn, out DataSeries snrSer, out DataSeries psnSer, out DataSeries tvSer)
{
// Initialize arrays
ArrayHolder[] ah = new ArrayHolder[61];
for( int n = 12; n < 61; n++ )
ah[n] = new ArrayHolder();

double domCycle = 0d;
string s = ds.Description + ")";
DataSeries[] DB = new DataSeries[61];
DataSeries domCyc = new DataSeries(Bars, "DC(" + s);
domCycMdn = new DataSeries(Bars, "DomCyc(" + s);
snrSer = new DataSeries(Bars, "SNR(" + s);
psnSer = new DataSeries(Bars, "Swing Position(" + s);
tvSer = new DataSeries(Bars, "Trend Vigor(" + s);

// Create and plot the decibel series - change the colors later
ChartPane dbPane = CreatePane(40, false, false );
for( int n = 12; n < 61; n++ ) {
double d = n / 2.0;
DB[n] = domCyc + d;
DB[n].Description = "Cycle." + d.ToString();
PlotSeries(dbPane, DB[n], Color.Black, LineStyle.Solid, 4);
}

DataSeries[] Raster = new DataSeries[51];	// SNR Corona chart
ChartPane snrPane = CreatePane(40, false, false );
for( int n = 1; n < 51; n++ ) {
double d = 1d + n / 5.0;
Raster[n] = domCyc + d;
Raster[n].Description = "SNR." + d.ToString();
PlotSeries(snrPane, Raster[n], Color.Black, LineStyle.Solid, 4);
}

DataSeries[] RasterSwg = new DataSeries[51];	// Swing Corona chart
ChartPane swgPane = CreatePane(40, false, false );
for( int n = 1; n < 51; n++ ) {
double d = 0.2 * n - 5.0;
RasterSwg[n] = domCyc + d;
RasterSwg[n].Description = "Swing." + d.ToString();
PlotSeries(swgPane, RasterSwg[n], Color.Black, LineStyle.Solid, 4);
}

DataSeries[] RasterTV = new DataSeries[51];	// Trend Vigor Corona chart
ChartPane tvPane = CreatePane(40, false, false );
for( int n = 1; n < 51; n++ ) {
double d = 0.4 * n - 10.0;
RasterTV[n] = domCyc + d;
RasterTV[n].Description = "TV." + d.ToString();
PlotSeries(tvPane, RasterTV[n], Color.Black, LineStyle.Solid, 4);
}

Color[] color = new Color[21];		// Convert decibels to RGB color for display
for( int n = 0; n <= 10; n++ )		// yellow to red: 0 to 10 dB
color[n] = Color.FromArgb(255, (int)(255 - (255 * n / 10)), 0);
for( int n = 11; n <= 20; n++ )		// red to black: 11 to 20 db
color[n] = Color.FromArgb( (int)(255 * (20 - n)/10 ), 0, 0);

Color[] colorSNR = new Color[21];	// Corona chart SNR colors
for( int n = 0; n <= 10; n++ ) {
int c1 = 220 - ( 22 * n );
int c2 = 255 - ( 7 * n );
colorSNR[n] = Color.FromArgb(c1, c2, c2);
}
for( int n = 11; n <= 20; n++ ) {
int c2 = (int)(190 * ( 2 - n/10d ));
colorSNR[n] = Color.FromArgb(0, c2, c2);
}

Color[] colorSwg = new Color[21];	// Corona chart Swing colors
for( int n = 0; n <= 10; n++ ) {
int c1 = 180 - ( 18 * n );
int c2 = 255 - ( 8 * n );
int c3 = 210 - ( 15 * n );
colorSwg[n] = Color.FromArgb(c1, c2, c3);
}
for( int n = 11; n <= 20; n++ ) {
int c2 = (int)(172 * ( 2 - n/10d ));
int c3 = (int)(64 * ( 2 - n/10d ));
colorSwg[n] = Color.FromArgb(0, c2, c3);
}			Color[] colorTV = new Color[21];	// Trend Vigor chart colors
for( int n = 0; n <= 10; n++ ) {
int c1 = 60 - ( 6 * n );
int c2 = 120 - ( 12 * n );
colorTV[n] = Color.FromArgb(c1, c2, 255);
}
for( int n = 11; n <= 20; n++ )
colorTV[n] = Color.FromArgb(0, 0, (int)(255 * ( 2 - n/10d )));

// Detrend data by High Pass Filtering with a 40 Period cutoff
DataSeries HP = domCyc;
double alpha = (1 - Math.Sin(twoPi/30)) / Math.Cos(twoPi/30);
for(int bar = 1; bar < Bars.Count; bar++)
HP[bar] = 0.5 * (1 + alpha)* Momentum.Series(ds, 1)[bar] + alpha * HP[bar-1];
DataSeries smoothHP = FIR.Series(HP, "1,2,3,3,2,1");
DataSeries hmlSer = Median.Series( High - Low, 5 );

double avg, signal, noise, snr;	// Variables SNR
double avg1 = 0d;
double signal1 = 0d;
double noise1 = 0d;

const double delta2 = 0.1;		// Variables Swing, TV
double BP2_1 = 0d;
double BP2_2 = 0d;
double beta2, BP2, g2, alpha2, Q2, Lead60, HL, LL, widthSwg;
ArrayList fifoList = new ArrayList(51);
ArrayList fifoPsn = new ArrayList(21);
double ratio = 0d;
double ratio1 = 0d;
double widthTV = 0d;

// arrays to hold raster values from previous bar
int[] raster2 = new int[51];
int[] raster2Swg = new int[51];
int[] raster2TV = new int[51];

for( int bar = 51; bar < Bars.Count; bar++ )
{
double maxAmpl = 0d;
double delta = -0.015 * bar + 0.5;
delta = delta < 0.1 ? 0.1 : delta;
for( int n = 12; n < 61; n++ )
{
double beta = Math.Cos(fourPi / n);
double g = 1 / Math.Cos(2 * fourPi * delta / n);
double a = g - Math.Sqrt(g * g - 1);
ah[n].Q = Momentum.Series(smoothHP, 1)[bar] * n / fourPi;
ah[n].I = smoothHP[bar];
ah[n].R = 0.5 * (1 - a) * (ah[n].I - ah[n].I3) + beta * (1 + a) * ah[n].R2 - a * ah[n].R3;
ah[n].Im = 0.5 * (1 - a) * (ah[n].Q - ah[n].Q3) + beta * (1 + a) * ah[n].Im2 - a * ah[n].Im3;
ah[n].A = ah[n].R * ah[n].R + ah[n].Im * ah[n].Im;
maxAmpl = ah[n].A > maxAmpl ? ah[n].A : maxAmpl;
}

double num = 0;	double den = 0;
for( int n = 12; n < 61; n++ )
{
ah[n].I3 = ah[n].I2;
ah[n].I2 = ah[n].I;
ah[n].Q3 = ah[n].Q2;
ah[n].Q2 = ah[n].Q;
ah[n].R3 = ah[n].R2;
ah[n].R2 = ah[n].R;
ah[n].Im3 = ah[n].Im2;
ah[n].Im2 = ah[n].Im;
ah[n].dB2 = ah[n].dB;

if( maxAmpl != 0 && ah[n].A / maxAmpl > 0 )
ah[n].dB = 10 * Math.Log10( (1 - 0.99 * ah[n].A / maxAmpl) / 0.01 );
ah[n].dB = 0.33 * ah[n].dB + 0.67 * ah[n].dB2;
ah[n].dB = ah[n].dB > 20 ? 20 : ah[n].dB;
SetSeriesBarColor(bar, DB[n], color[(int)Math.Round(ah[n].dB)]);

if( ah[n].dB <= 6 ) {
num += n * (20 - ah[n].dB);
den += (20 - ah[n].dB);
}
if( den != 0 ) domCycle = 0.5 * num / den;
}
domCycMdn[bar] = Median.Value(bar, domCyc, 5);
domCycMdn[bar] = domCycle < 6 ? 6: domCycle;

// Calculate SNR this bar
signal = 0d;
noise = 0d;
snr = 0d;
avg = 0.1 * ds[bar] + 0.9 * avg1;
if( avg != 0d || maxAmpl > 0 )
signal = 0.2 * Math.Sqrt(maxAmpl) + 0.9 * signal1;
if( avg != 0d )
noise = 0.1 * hmlSer[bar] + 0.9 * noise1;
if( signal != 0d || noise != 0d )
snr = 20 * Math.Log10(signal/noise) + 3.5;
snr = snr < 1d ? 0d : snr;
snr = snr > 10d ? 10d : snr;
snr = snr * 0.1;
snrSer[bar] = snr * 10 + 1;
double Width = snr > 0.5 ? 0d : -0.4 * snr + 0.2;

// Calculate the Swing this bar
beta2 = Math.Cos(twoPi / domCycMdn[bar]);
g2 = 1 / Math.Cos(fourPi * delta2 / domCycMdn[bar]);
alpha2 = g2 - Math.Sqrt(g2 * g2 - 1);
BP2 = 0.5 * (1 - alpha2) * (ds[bar] - ds[bar-2])
+ beta2 * (1 + alpha2) * BP2_1 - alpha2 * BP2_2;
//Quadrature component is derivative of InPhase component divided by omega
Q2 = (domCycMdn[bar] / twoPi) * (BP2 - BP2_1);
Lead60 = 0.5 * BP2 + 0.866 * Q2;
PhaseList(ref fifoList, 50, Lead60, out HL, out LL);
double Psn = (Lead60 - LL) / (HL - LL);
PhaseList(ref fifoPsn, 20, Psn, out HL, out LL);
if( HL - LL > 0.85 ) widthSwg = 0.01;
else widthSwg = 0.15 * (HL - LL);
psnSer[bar] = 10 * Psn - 5d;

// Calculate Trend Vigor this bar
// (Filter Bandpass component - same as Swing above; substitute variable names)

//Pythagorean theorem to establish cycle amplitude
double Ampl2 = Math.Sqrt(BP2 * BP2 + Q2 * Q2);

//Trend amplitude taken over the cycle period
int cycPeriod = (int)(domCycMdn[bar] - 1);
if( cycPeriod < 12 ) cycPeriod = 12;
double Trend = ds[bar] - ds[bar - cycPeriod];
if( Trend != 0 && Ampl2 != 0 )
ratio = 0.33 * Trend /Ampl2 + 0.67 * ratio1;
if( ratio > 10 ) ratio = 10d;
if( ratio < -10 ) ratio = -10d;

double tv = 0.05 * (ratio + 10d);
if( tv < 0.3 || tv > 0.7 ) widthTV = 0.01;
if( tv >= 0.3 && tv < 0.5 ) widthTV = tv - 0.3;
if( tv >= 0.5 && tv <= 0.7 ) widthTV = 0.7 - tv;
tvSer[bar] = 20d * tv - 10d;

/* Plot the rasters... */
int snr50 = (int)Math.Round(50 * snr);
int psn50 = (int)Math.Round(50 * Psn);
int tv50  = (int)Math.Round(50 * tv);

for( int n = 1; n < 51; n++ )
{	// 0.4 used below comes from 20/50 to normalize the color from 1 to 20
double raster = 20d;
if( n < snr50 )  // bottom of corona
raster = 0.5 * (Math.Pow((20 * snr - 0.4 * n) / Width, 0.8) + raster2[n]);
else if( n > snr50 && (0.4 * n - 20 * snr) / Width > 1 )  // top of corona
raster = 0.5 * (Math.Pow((-20 * snr + 0.4 * n) / Width, 0.8) + raster2[n]);
else if( n == snr50 )
raster = 0.5 * raster2[n];
if ( raster > 20 ) raster = 20;
else if ( raster < 0 ) raster = 0;
if ( snr > 0.5 ) raster = 20;
SetSeriesBarColor(bar, Raster[n], colorSNR[(int)(raster)]);
raster2[n] = (int)raster;

// Plot the Swing raster
double rasterSwg = 20d;
if( n < psn50 )  // bottom of corona
rasterSwg = 0.5 * (Math.Pow((20 * Psn - 0.4 * n) / widthSwg, 0.95) + 0.5 * raster2Swg[n]);
else if( n > psn50 && (0.4 * n - 20 * Psn) / widthSwg > 1 )  // top of corona
rasterSwg = 0.5 * (Math.Pow((-20 * Psn + 0.4 * n) / widthSwg, 0.95) + 0.5 * raster2Swg[n]);
else if( n == psn50 )
rasterSwg = 0.5 * raster2Swg[n];
if ( rasterSwg > 20 ) rasterSwg = 20;
else if ( rasterSwg < 0 ) rasterSwg = 0;
if ( HL - LL > 0.8 ) rasterSwg = 20;
SetSeriesBarColor(bar, RasterSwg[n], colorSwg[(int)(rasterSwg)]);
raster2Swg[n] = (int)rasterSwg;					// Plot the Trend Vigor raster
double rasterTV = 20d;
if( n < tv50 )
rasterTV = 0.8 * (Math.Pow((20 * tv - 0.4 * n) / widthTV, 0.85) + 0.2 * raster2TV[n]);
else if( n > tv50 )  // top of corona
rasterTV = 0.8 * (Math.Pow((-20 * tv + 0.4 * n) / widthTV, 0.85) + 0.2 * raster2TV[n]);
else if( n == tv50 )
rasterTV = 0.5 * raster2TV[n];
if( rasterTV < 0 ) rasterTV = 0;
if( rasterTV > 20 || tv < 0.3 || tv > 0.7 ) rasterTV = 20;
SetSeriesBarColor(bar, RasterTV[n], colorTV[(int)(rasterTV)]);
raster2TV[n] = (int)rasterTV;
}
avg1 = avg;
signal1 = signal;
noise1 = noise;
BP2_2 = BP2_1;
BP2_1 = BP2;
ratio1 = ratio;
}
HideVolume();
HidePaneLines();
PlotSeries(dbPane, domCycMdn, Color.Yellow, WealthLab.LineStyle.Solid, 2);
DrawLabel(dbPane, "Dominant Cycle|", Color.Black);
PlotSeries(snrPane, snrSer, Color.FromArgb(220, 255, 255), LineStyle.Solid, 2);
DrawLabel(snrPane, "SNR|", Color.Black);
PlotSeries(swgPane, psnSer, Color.FromArgb(180, 255, 210), LineStyle.Solid, 2);
DrawLabel(swgPane, "Swing Position|", Color.Black);
PlotSeries(tvPane, tvSer, Color.FromArgb(64, 128, 255), LineStyle.Solid, 2);
DrawLabel(tvPane, "Trend Vigor|", Color.Black);
}

protected override void Execute()
{
// Declare the DataSeries to pass to the method
DataSeries dc, snr, swing, tv;

// Get the dominant cycle, SNR, Swing Position, and Trend Vigor for use in a strategy
SuperIndicators(AveragePrice.Series(Bars), out dc, out snr, out swing, out tv);
}
}
}```
