TASC 2019-09 | A Simple Way To Trade Seasonality (Kaufman)

Traders' Tip text

WealthScript Code (C#)

using System;
using System.Collections.Generic;
using System.Text;
using System.Drawing;
using WealthLab;
using WealthLab.Indicators;
using System.Linq;	//Click "References...", check "System.Core", click OK
using System.IO;
using System.Globalization;
using System.Windows.Forms.DataVisualization.Charting;
//1. Click "References...", then "Other Assemblies..." > "Add a reference"
//2. In "C:\Windows\Microsoft.NET\Framework64\v4.0.30319\" (or "Framework" on 32-bit systems),
//choose and okay "System.Windows.Forms.DataVisualization.dll"

namespace WealthLab.Strategies
{
	public class SC_2019_09_KaufmanSeasonality : WealthScript
	{
		private StrategyParameter paramYears;
		private StrategyParameter paramPrice;
		private StrategyParameter paramThresholdHigh;
		private StrategyParameter paramThresholdLow;

		public SC_2019_09_KaufmanSeasonality()
		{
			paramYears = CreateParameter("Average, Years", 4, 2, 100, 1);
			paramPrice = CreateParameter("Use (H+L)/2 or Close", 0, 0, 1, 1);
			paramThresholdHigh = CreateParameter("High freq >", 75, 50, 90, 5);
			paramThresholdLow = CreateParameter("Low freq <", 25, 5, 50, 5);
		}

		protected override void Execute()
		{
			if (Bars.Scale != BarScale.Monthly)
			{
				DrawLabel( PricePane, "Please switch to Monthly scale");
				Abort();
			}

			var howManyYearsToAverage = paramYears.ValueInt;
			var firstYearWithValidData = Date[0].Year + howManyYearsToAverage;
			var startBar = DateTimeToBar(new DateTime( firstYearWithValidData, 12, 31), false);

			//3. Only trade if the high frequency is 75 % or greater and the low frequency is 25 % or lower.
			var thresholdHigh = paramThresholdHigh.ValueInt / 100d;
			var thresholdLow = paramThresholdLow.ValueInt / 100d;

			//Average annual price
			DataSeries avgYearlyPrice = AveragePrice.Series(BarScaleConverter.ToYearly(Bars));

			//Average monthly prices (take AveragePrice or simply Close)
			SetScaleMonthly();
			DataSeries avgMonthlyPrice = paramPrice.ValueInt == 0 ? AveragePrice.Series(Bars) : Close;
			RestoreScale();

			avgMonthlyPrice = Synchronize( avgMonthlyPrice);
			avgYearlyPrice = Synchronize( avgYearlyPrice);

			HideVolume();

			//Collect monthly average price
			var lstMonths = new List<MonthData>();
			for (int bar = 1; bar < Bars.Count; bar++)
			{
				if (Date[bar].Month != Date[bar - 1].Month) //New month
				{
					lstMonths.Add(new MonthData(Date[bar].Month, Date[bar].Year, avgMonthlyPrice[bar]));
				}
			}

			//Calculations
			for (int bar = GetTradingLoopStartBar( startBar); bar < Bars.Count; bar++)
			{
				if (bar <= 0)
					continue;

				int yearTo = Date[bar].Year;
				int yearFrom = yearTo - 1 - howManyYearsToAverage;

				//Average price by year
				var yearlyAverages = lstMonths.GroupBy(i => i.Year)
					.Where(i => i.Key < yearTo & i.Key >= yearFrom)
					.Select(g => new { Year = g.Key, Average = g.Average(a => a.AvgPrice) });

				var lstFreqUp = new Dictionary<int, double>();
				var lstBreakdown = new Dictionary<int, Tuple<double, double>>();

				//Calculate Monthly Adjusted Returns, Up Months and Frequency of Positive Returns
				for (int month = 1; month <= 12; month++)
				{
					int monthCount = 0, upMonths = 0;
					double freqUp = 0d, monthlyAdjReturn = 0d;

					foreach (var _m in lstMonths)
					{
						//Ensure this year's data is excluded from processing and trading
						if (_m.Month == month && _m.Year < yearTo && _m.Year >= yearFrom)
						{
							monthCount++;

							var givenYearAverage = yearlyAverages.GroupBy(i => i.Year).
								Where(i => i.Key == _m.Year).First().ToList();

							var _adjReturn = _m.AvgPrice / givenYearAverage[0].Average - 1;
							if (_adjReturn > 0)
								upMonths++;

							monthlyAdjReturn += _adjReturn;
						}
					}

					if (monthCount > 0)
					{
						freqUp = upMonths / (double)monthCount;
						monthlyAdjReturn /= monthCount;
					}

					//1. Average the monthly frequency of the past N years.
					lstFreqUp.Add(month, freqUp);
					lstBreakdown.Add(month, new Tuple<double, double>(freqUp, monthlyAdjReturn));
				}

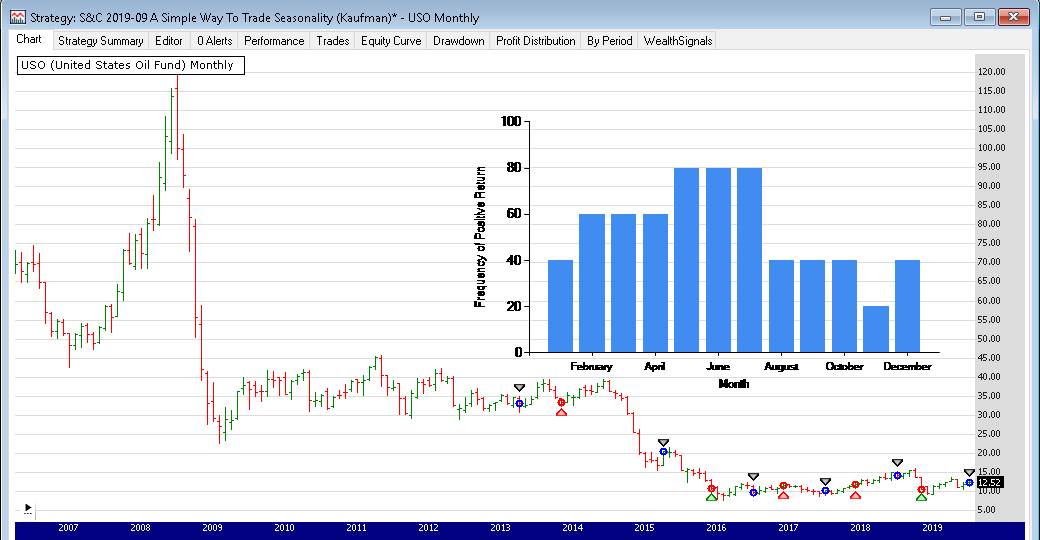

				//Plot actual chart of Frequency of Positive Returns (for last N years)
				if(bar == Bars.Count-1)
				{
					Chart chart = new Chart();							//Histogram chart
					chart.BackColor = Color.Transparent;
					chart.Width = 500;
					string name = "Bins";
					chart.ChartAreas.Add(name);
					chart.ChartAreas[0].AxisX.MajorGrid.Enabled = chart.ChartAreas[0].AxisY.MajorGrid.Enabled = false;
					chart.ChartAreas[0].AxisX.Title = "Month";		//Custom axis titles
					chart.ChartAreas[0].AxisY.Title = "Frequency of Positive Returns";
					chart.ChartAreas[0].BackColor = Color.Transparent;
					chart.ChartAreas[0].AxisY.Minimum = 0; chart.ChartAreas[0].AxisY.Maximum = 100;
					chart.Series.Add(name);
					chart.Series[name].ChartType = SeriesChartType.Column;

					foreach (var f in lstFreqUp)
					{
						chart.Series[name].Points.AddXY(
							CultureInfo.GetCultureInfo("en-US").DateTimeFormat.GetMonthName(f.Key), f.Value * 100d);
					}

					using (MemoryStream memStream = new MemoryStream()) {
						chart.SaveImage(memStream, ChartImageFormat.Png);
						Image img = Image.FromStream(memStream);
						DrawImage( PricePane, img, Bars.Count-50, Close[Bars.Count-50], false );
					}
				}

				//Trading
				if( IsLastPositionActive)
				{
					int monthToExit = (int)LastPosition.Tag;
					if (Date[bar].Month == monthToExit)
						ExitAtClose(bar, LastPosition, monthToExit.ToString());
				}
				else
				{
					//Month numbers with frequency higher (lower) than a threshold
					var highFreqMonths = lstFreqUp.Where(p => p.Value > thresholdHigh);
					var lowFreqMonths = lstFreqUp.Where(p => p.Value < thresholdLow);
					var resultsAreValid = (highFreqMonths.Count() > 0 && lowFreqMonths.Count() > 0);

					if (resultsAreValid)
					{
						//2. Find the last occurrences of the highest (lowest) frequency
						int lastHighestFrequencyMonth = 0, lastLowestFrequencyMonth = 0;
						lastHighestFrequencyMonth = highFreqMonths.LastOrDefault().Key;
						lastLowestFrequencyMonth = lowFreqMonths.LastOrDefault().Key;

						//4.If the high frequency comes first, sell short at the end of the month with the high frequency.
						if (lastHighestFrequencyMonth < lastLowestFrequencyMonth)
						{
							if (Date[bar].Month == lastHighestFrequencyMonth)
								if( ShortAtClose(bar, lastHighestFrequencyMonth.ToString()) != null)
									//Cover the short at the end of the month with the low frequency.
									LastPosition.Tag = (object)lastLowestFrequencyMonth;
						}
							//5. If the low frequency comes first, buy at the end of the month with the low frequency.
						else
						{
							if (Date[bar].Month == lastLowestFrequencyMonth)
								if( BuyAtClose(bar, lastLowestFrequencyMonth.ToString()) != null)
									//Sell to exit at the end of the month with the high frequency.
									LastPosition.Tag = (object)lastHighestFrequencyMonth;
						}
					}
				}
			}
		}
	}

	public class MonthData
	{
		public MonthData() { }
		public MonthData(int month, int year, double avgPrice)
		{
			Month = month; Year = year; AvgPrice = avgPrice;
		}

		private int _month;

		public int Month
		{
			get { return _month; }
			set { _month = value; }
		}

		private int _year;

		public int Year
		{
			get { return _year; }
			set { _year = value; }
		}

		private double _avgPrice;

		public double AvgPrice
		{
			get { return _avgPrice; }
			set { _avgPrice = value; }
		}
	}
}
