// WAS: double Trend = ds[bar] - ds[cycPeriod]; // SHOULD BE (IS): double Trend = ds[bar] - ds[bar - cycPeriod];

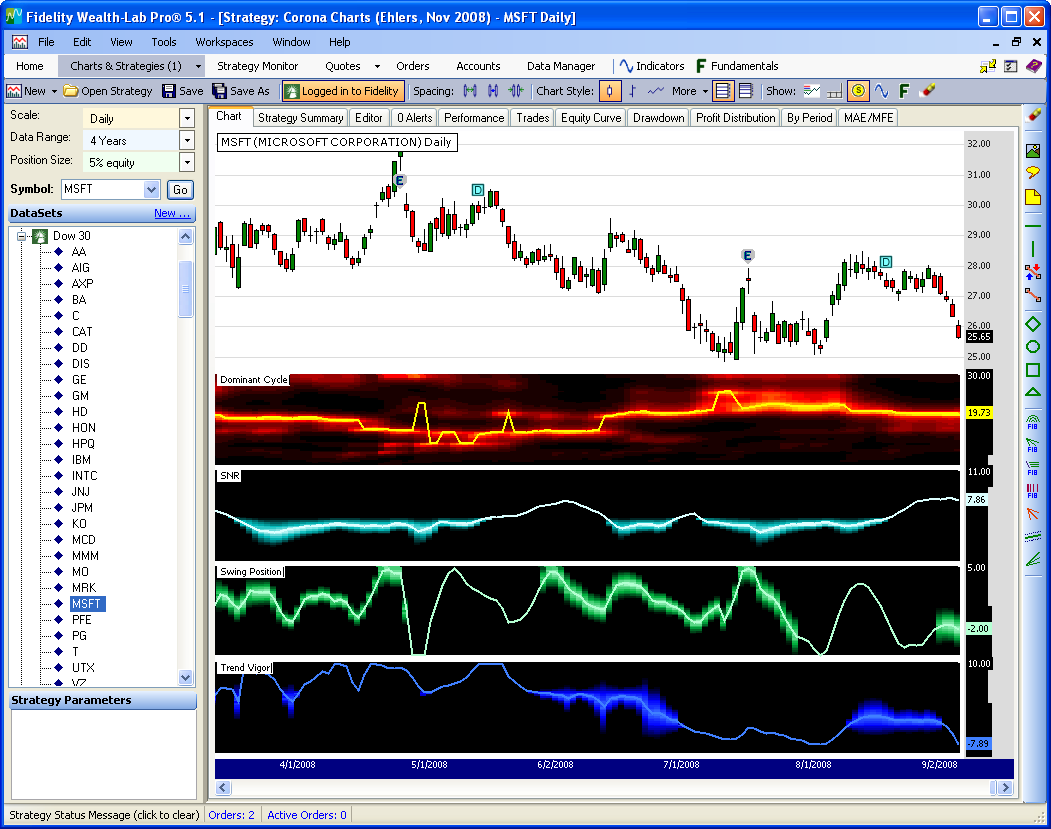

/* Strategy Code revised 20090611 */ using System; using System.Collections; using System.Collections.Generic; using System.Text; using System.Drawing; using WealthLab; using WealthLab.Indicators;namespace WealthLab.Strategies { public class CoronaCharts : WealthScript { public const double twoPi = 2 * Math.PI; public const double fourPi = 4 * Math.PI; public class ArrayHolder { // current, old, older internal double I, I2, I3; internal double Q, Q2, Q3; internal double R, R2, R3; internal double Im, Im2, Im3; internal double A; internal double dB, dB2; } // Keep cntMax fifo samples and find the Highest and Lowest lead for samples in the list private void PhaseList(ref ArrayList fifo, int cntMax, double lead, out double H, out double L) { H = lead; L = lead; if( fifo.Count < cntMax ) fifo.Add(lead); else { fifo.RemoveAt(0); fifo.Add(lead); } for (int n = 0; n < fifo.Count - 1; n++) { double val = (double)fifo[n]; if( val > H ) H = val; if( val < L ) L = val; } } public void SuperIndicators(DataSeries ds, out DataSeries domCycMdn, out DataSeries snrSer, out DataSeries psnSer, out DataSeries tvSer) { // Initialize arrays ArrayHolder[] ah = new ArrayHolder[61]; for( int n = 12; n < 61; n++ ) ah[n] = new ArrayHolder(); double domCycle = 0d; string s = ds.Description + ")"; DataSeries[] DB = new DataSeries[61]; DataSeries domCyc = new DataSeries(Bars, "DC(" + s); domCycMdn = new DataSeries(Bars, "DomCyc(" + s); snrSer = new DataSeries(Bars, "SNR(" + s); psnSer = new DataSeries(Bars, "Swing Position(" + s); tvSer = new DataSeries(Bars, "Trend Vigor(" + s); // Create and plot the decibel series - change the colors later ChartPane dbPane = CreatePane(40, false, false ); for( int n = 12; n < 61; n++ ) { double d = n / 2.0; DB[n] = domCyc + d; DB[n].Description = "Cycle." + d.ToString(); PlotSeries(dbPane, DB[n], Color.Black, LineStyle.Solid, 4); } DataSeries[] Raster = new DataSeries[51]; // SNR Corona chart ChartPane snrPane = CreatePane(40, false, false ); for( int n = 1; n < 51; n++ ) { double d = 1d + n / 5.0; Raster[n] = domCyc + d; Raster[n].Description = "SNR." + d.ToString(); PlotSeries(snrPane, Raster[n], Color.Black, LineStyle.Solid, 4); } DataSeries[] RasterSwg = new DataSeries[51]; // Swing Corona chart ChartPane swgPane = CreatePane(40, false, false ); for( int n = 1; n < 51; n++ ) { double d = 0.2 * n - 5.0; RasterSwg[n] = domCyc + d; RasterSwg[n].Description = "Swing." + d.ToString(); PlotSeries(swgPane, RasterSwg[n], Color.Black, LineStyle.Solid, 4); } DataSeries[] RasterTV = new DataSeries[51]; // Trend Vigor Corona chart ChartPane tvPane = CreatePane(40, false, false ); for( int n = 1; n < 51; n++ ) { double d = 0.4 * n - 10.0; RasterTV[n] = domCyc + d; RasterTV[n].Description = "TV." + d.ToString(); PlotSeries(tvPane, RasterTV[n], Color.Black, LineStyle.Solid, 4); } Color[] color = new Color[21]; // Convert decibels to RGB color for display for( int n = 0; n <= 10; n++ ) // yellow to red: 0 to 10 dB color[n] = Color.FromArgb(255, (int)(255 - (255 * n / 10)), 0); for( int n = 11; n <= 20; n++ ) // red to black: 11 to 20 db color[n] = Color.FromArgb( (int)(255 * (20 - n)/10 ), 0, 0); Color[] colorSNR = new Color[21]; // Corona chart SNR colors for( int n = 0; n <= 10; n++ ) { int c1 = 220 - ( 22 * n ); int c2 = 255 - ( 7 * n ); colorSNR[n] = Color.FromArgb(c1, c2, c2); } for( int n = 11; n <= 20; n++ ) { int c2 = (int)(190 * ( 2 - n/10d )); colorSNR[n] = Color.FromArgb(0, c2, c2); } Color[] colorSwg = new Color[21]; // Corona chart Swing colors for( int n = 0; n <= 10; n++ ) { int c1 = 180 - ( 18 * n ); int c2 = 255 - ( 8 * n ); int c3 = 210 - ( 15 * n ); colorSwg[n] = Color.FromArgb(c1, c2, c3); } for( int n = 11; n <= 20; n++ ) { int c2 = (int)(172 * ( 2 - n/10d )); int c3 = (int)(64 * ( 2 - n/10d )); colorSwg[n] = Color.FromArgb(0, c2, c3); } Color[] colorTV = new Color[21]; // Trend Vigor chart colors for( int n = 0; n <= 10; n++ ) { int c1 = 60 - ( 6 * n ); int c2 = 120 - ( 12 * n ); colorTV[n] = Color.FromArgb(c1, c2, 255); } for( int n = 11; n <= 20; n++ ) colorTV[n] = Color.FromArgb(0, 0, (int)(255 * ( 2 - n/10d ))); // Detrend data by High Pass Filtering with a 40 Period cutoff DataSeries HP = domCyc; double alpha = (1 - Math.Sin(twoPi/30)) / Math.Cos(twoPi/30); for(int bar = 1; bar < Bars.Count; bar++) HP[bar] = 0.5 * (1 + alpha)* Momentum.Series(ds, 1)[bar] + alpha * HP[bar-1]; DataSeries smoothHP = FIR.Series(HP, "1,2,3,3,2,1"); DataSeries hmlSer = Median.Series( High - Low, 5 ); double avg, signal, noise, snr; // Variables SNR double avg1 = 0d; double signal1 = 0d; double noise1 = 0d; const double delta2 = 0.1; // Variables Swing, TV double BP2_1 = 0d; double BP2_2 = 0d; double beta2, BP2, g2, alpha2, Q2, Lead60, HL, LL, widthSwg; ArrayList fifoList = new ArrayList(51); ArrayList fifoPsn = new ArrayList(21); double ratio = 0d; double ratio1 = 0d; double widthTV = 0d; // arrays to hold raster values from previous bar int[] raster2 = new int[51]; int[] raster2Swg = new int[51]; int[] raster2TV = new int[51]; for( int bar = 51; bar < Bars.Count; bar++ ) { double maxAmpl = 0d; double delta = -0.015 * bar + 0.5; delta = delta < 0.1 ? 0.1 : delta; for( int n = 12; n < 61; n++ ) { double beta = Math.Cos(fourPi / n); double g = 1 / Math.Cos(2 * fourPi * delta / n); double a = g - Math.Sqrt(g * g - 1); ah[n].Q = Momentum.Series(smoothHP, 1)[bar] * n / fourPi; ah[n].I = smoothHP[bar]; ah[n].R = 0.5 * (1 - a) * (ah[n].I - ah[n].I3) + beta * (1 + a) * ah[n].R2 - a * ah[n].R3; ah[n].Im = 0.5 * (1 - a) * (ah[n].Q - ah[n].Q3) + beta * (1 + a) * ah[n].Im2 - a * ah[n].Im3; ah[n].A = ah[n].R * ah[n].R + ah[n].Im * ah[n].Im; maxAmpl = ah[n].A > maxAmpl ? ah[n].A : maxAmpl; } double num = 0; double den = 0; for( int n = 12; n < 61; n++ ) { ah[n].I3 = ah[n].I2; ah[n].I2 = ah[n].I; ah[n].Q3 = ah[n].Q2; ah[n].Q2 = ah[n].Q; ah[n].R3 = ah[n].R2; ah[n].R2 = ah[n].R; ah[n].Im3 = ah[n].Im2; ah[n].Im2 = ah[n].Im; ah[n].dB2 = ah[n].dB; if( maxAmpl != 0 && ah[n].A / maxAmpl > 0 ) ah[n].dB = 10 * Math.Log10( (1 - 0.99 * ah[n].A / maxAmpl) / 0.01 ); ah[n].dB = 0.33 * ah[n].dB + 0.67 * ah[n].dB2; ah[n].dB = ah[n].dB > 20 ? 20 : ah[n].dB; SetSeriesBarColor(bar, DB[n], color[(int)Math.Round(ah[n].dB)]); if( ah[n].dB <= 6 ) { num += n * (20 - ah[n].dB); den += (20 - ah[n].dB); } if( den != 0 ) domCycle = 0.5 * num / den; } domCycMdn[bar] = Median.Value(bar, domCyc, 5); domCycMdn[bar] = domCycle < 6 ? 6: domCycle; // Calculate SNR this bar signal = 0d; noise = 0d; snr = 0d; avg = 0.1 * ds[bar] + 0.9 * avg1; if( avg != 0d || maxAmpl > 0 ) signal = 0.2 * Math.Sqrt(maxAmpl) + 0.9 * signal1; if( avg != 0d ) noise = 0.1 * hmlSer[bar] + 0.9 * noise1; if( signal != 0d || noise != 0d ) snr = 20 * Math.Log10(signal/noise) + 3.5; snr = snr < 1d ? 0d : snr; snr = snr > 10d ? 10d : snr; snr = snr * 0.1; snrSer[bar] = snr * 10 + 1; double Width = snr > 0.5 ? 0d : -0.4 * snr + 0.2; // Calculate the Swing this bar beta2 = Math.Cos(twoPi / domCycMdn[bar]); g2 = 1 / Math.Cos(fourPi * delta2 / domCycMdn[bar]); alpha2 = g2 - Math.Sqrt(g2 * g2 - 1); BP2 = 0.5 * (1 - alpha2) * (ds[bar] - ds[bar-2]) + beta2 * (1 + alpha2) * BP2_1 - alpha2 * BP2_2; //Quadrature component is derivative of InPhase component divided by omega Q2 = (domCycMdn[bar] / twoPi) * (BP2 - BP2_1); Lead60 = 0.5 * BP2 + 0.866 * Q2; PhaseList(ref fifoList, 50, Lead60, out HL, out LL); double Psn = (Lead60 - LL) / (HL - LL); PhaseList(ref fifoPsn, 20, Psn, out HL, out LL); if( HL - LL > 0.85 ) widthSwg = 0.01; else widthSwg = 0.15 * (HL - LL); psnSer[bar] = 10 * Psn - 5d; // Calculate Trend Vigor this bar // (Filter Bandpass component - same as Swing above; substitute variable names) //Pythagorean theorem to establish cycle amplitude double Ampl2 = Math.Sqrt(BP2 * BP2 + Q2 * Q2); //Trend amplitude taken over the cycle period int cycPeriod = (int)(domCycMdn[bar] - 1); if( cycPeriod < 12 ) cycPeriod = 12; double Trend = ds[bar] - ds[bar - cycPeriod]; if( Trend != 0 && Ampl2 != 0 ) ratio = 0.33 * Trend /Ampl2 + 0.67 * ratio1; if( ratio > 10 ) ratio = 10d; if( ratio < -10 ) ratio = -10d; double tv = 0.05 * (ratio + 10d); if( tv < 0.3 || tv > 0.7 ) widthTV = 0.01; if( tv >= 0.3 && tv < 0.5 ) widthTV = tv - 0.3; if( tv >= 0.5 && tv <= 0.7 ) widthTV = 0.7 - tv; tvSer[bar] = 20d * tv - 10d; /* Plot the rasters... */ int snr50 = (int)Math.Round(50 * snr); int psn50 = (int)Math.Round(50 * Psn); int tv50 = (int)Math.Round(50 * tv); for( int n = 1; n < 51; n++ ) { // 0.4 used below comes from 20/50 to normalize the color from 1 to 20 double raster = 20d; if( n < snr50 ) // bottom of corona raster = 0.5 * (Math.Pow((20 * snr - 0.4 * n) / Width, 0.8) + raster2[n]); else if( n > snr50 && (0.4 * n - 20 * snr) / Width > 1 ) // top of corona raster = 0.5 * (Math.Pow((-20 * snr + 0.4 * n) / Width, 0.8) + raster2[n]); else if( n == snr50 ) raster = 0.5 * raster2[n]; if ( raster > 20 ) raster = 20; else if ( raster < 0 ) raster = 0; if ( snr > 0.5 ) raster = 20; SetSeriesBarColor(bar, Raster[n], colorSNR[(int)(raster)]); raster2[n] = (int)raster; // Plot the Swing raster double rasterSwg = 20d; if( n < psn50 ) // bottom of corona rasterSwg = 0.5 * (Math.Pow((20 * Psn - 0.4 * n) / widthSwg, 0.95) + 0.5 * raster2Swg[n]); else if( n > psn50 && (0.4 * n - 20 * Psn) / widthSwg > 1 ) // top of corona rasterSwg = 0.5 * (Math.Pow((-20 * Psn + 0.4 * n) / widthSwg, 0.95) + 0.5 * raster2Swg[n]); else if( n == psn50 ) rasterSwg = 0.5 * raster2Swg[n]; if ( rasterSwg > 20 ) rasterSwg = 20; else if ( rasterSwg < 0 ) rasterSwg = 0; if ( HL - LL > 0.8 ) rasterSwg = 20; SetSeriesBarColor(bar, RasterSwg[n], colorSwg[(int)(rasterSwg)]); raster2Swg[n] = (int)rasterSwg; // Plot the Trend Vigor raster double rasterTV = 20d; if( n < tv50 ) rasterTV = 0.8 * (Math.Pow((20 * tv - 0.4 * n) / widthTV, 0.85) + 0.2 * raster2TV[n]); else if( n > tv50 ) // top of corona rasterTV = 0.8 * (Math.Pow((-20 * tv + 0.4 * n) / widthTV, 0.85) + 0.2 * raster2TV[n]); else if( n == tv50 ) rasterTV = 0.5 * raster2TV[n]; if( rasterTV < 0 ) rasterTV = 0; if( rasterTV > 20 || tv < 0.3 || tv > 0.7 ) rasterTV = 20; SetSeriesBarColor(bar, RasterTV[n], colorTV[(int)(rasterTV)]); raster2TV[n] = (int)rasterTV; } avg1 = avg; signal1 = signal; noise1 = noise; BP2_2 = BP2_1; BP2_1 = BP2; ratio1 = ratio; } HideVolume(); HidePaneLines(); PlotSeries(dbPane, domCycMdn, Color.Yellow, WealthLab.LineStyle.Solid, 2); DrawLabel(dbPane, "Dominant Cycle|", Color.Black); PlotSeries(snrPane, snrSer, Color.FromArgb(220, 255, 255), LineStyle.Solid, 2); DrawLabel(snrPane, "SNR|", Color.Black); PlotSeries(swgPane, psnSer, Color.FromArgb(180, 255, 210), LineStyle.Solid, 2); DrawLabel(swgPane, "Swing Position|", Color.Black); PlotSeries(tvPane, tvSer, Color.FromArgb(64, 128, 255), LineStyle.Solid, 2); DrawLabel(tvPane, "Trend Vigor|", Color.Black); } protected override void Execute() { // Declare the DataSeries to pass to the method DataSeries dc, snr, swing, tv; // Get the dominant cycle, SNR, Swing Position, and Trend Vigor for use in a strategy SuperIndicators(AveragePrice.Series(Bars), out dc, out snr, out swing, out tv); } } }
