TASC 2013-07 | The Step Candle Pattern (Vervoort)

Traders' Tip text

using System;
using System.Collections.Generic;
using System.Text;
using System.Drawing;
using WealthLab;
using WealthLab.Indicators;
using WealthLab.Rules.Candlesticks;
using TASCIndicators;

namespace WealthLab.Strategies
{
	public class IRSTS_StepPattern : WealthScript
	{
		private StrategyParameter paramPercent;
		private StrategyParameter paramLookbackForStepPattern;

		public IRSTS_StepPattern()
		{
			paramPercent = CreateParameter("Reversal %", 10.0, 1.0, 50.0, 1.0);
			paramLookbackForStepPattern = CreateParameter("Lookback", 3, 1, 20, 1);
		}

		bool isInsideBody( int bar, double price ) {
			return price <= Math.Max(Open[bar],Close[bar]) && price >= Math.Min(Open[bar],Close[bar]);
		}

		bool Upstep( int bar, int lookback ) {
			bool result = false;
			bool way1 = (Open[bar] > Close[bar] & Open[bar+1] < Close[bar+1]) && isInsideBody(bar, Open[bar+1]) && Close[bar+1] > Open[bar];
			bool way2 = (Open[bar] < Close[bar] & Open[bar+1] < Close[bar+1]) && isInsideBody(bar, Open[bar+1]) && Close[bar+1] > Close[bar];
			bool way3 = (Open[bar-1] > Close[bar-1]) && (Open[bar] < Close[bar]) && isInsideBody(bar, Open[bar+1]) && (Close[bar] > Open[bar-1]);
			bool way4 = (Open[bar-1] < Close[bar-1]) && (Open[bar] < Close[bar]) && isInsideBody(bar, Open[bar+1]) && (Close[bar] > Close[bar-1]);
			result = bar == LowestBar.Series( Low,lookback )[bar] && ( way1 | way2 | way3 | way4 );
			return result;
		}

		bool Downstep( int bar, int lookback ) {
			bool result = false;
			bool way1 = (Open[bar] < Close[bar] & Open[bar+1] > Close[bar+1]) && isInsideBody(bar, Open[bar+1]) && Close[bar+1] < Open[bar];
			bool way2 = (Open[bar] > Close[bar] & Open[bar+1] > Close[bar+1]) && isInsideBody(bar, Open[bar+1]) && Close[bar+1] < Close[bar];
			bool way3 = (Open[bar-1] < Close[bar-1]) && (Open[bar] > Close[bar]) && isInsideBody(bar, Open[bar+1]) && (Close[bar] < Open[bar-1]);
			bool way4 = (Open[bar-1] > Close[bar-1]) && (Open[bar] > Close[bar]) && isInsideBody(bar, Open[bar+1]) && (Close[bar] < Close[bar-1]);
			result = bar == HighestBar.Series( High,lookback )[bar] && ( way1 | way2 | way3 | way4 );
			return result;
		}

		protected override void Execute()
		{
			int lookback = paramLookbackForStepPattern.ValueInt;
			double percent = paramPercent.Value;
			const string t = "\t"; string s = string.Empty;
			ZZBuilder zz = new ZZBuilder( Bars, percent );
			List<ZigZag> lst = zz.ZigZags;

			bool[] BearishEngulfing; CandlePattern.BearishEngulfingLines(this, s, false, out BearishEngulfing);
			bool[] BullishEngulfing; CandlePattern.BullishEngulfingLines(this, s, false, out BullishEngulfing);
			bool[] BearishHarami; CandlePattern.BearishHarami(this, s, false, out BearishHarami);
			bool[] BullishHarami; CandlePattern.BullishHarami(this, s, false, out BullishHarami);
			HideVolume(); SetBarColors(Color.Silver,Color.Silver);

			if( lst != null )
			{

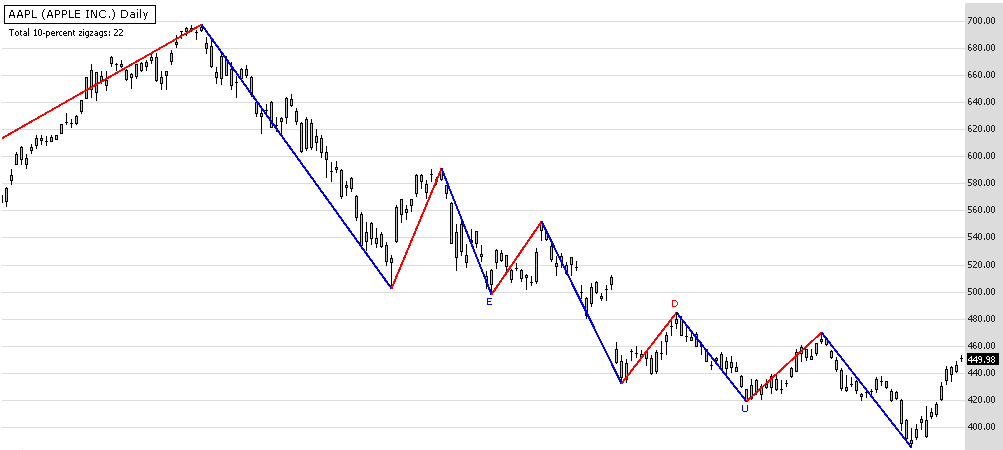

				DrawLabel(PricePane, string.Format( "Total {0}-percent zigzags: {1}", percent, lst.Count) );
				foreach( ZigZag z in lst ) {
					if ( z.inPrice == 0.0 )
						continue;
					DrawLine( PricePane, z.zigBar, z.inPrice, z.zagBar, z.outPrice,
						z.isMoveUp ? Color.Blue : Color.Red, LineStyle.Solid, 2 );
				}
			}

			for(int bar = 2 + lookback; bar < Bars.Count; bar++)
			{
				if( lst != null ) {
					if( lst.Count > 0 ) {
						int idx = 0;
						foreach( ZigZag z in lst ) {
							if( z.barDetected == bar ) {
								//SetBackgroundColor( bar, !z.isMoveUp ? Color.FromArgb(30,Color.Green) : Color.FromArgb(30,Color.Red) );

								if( Downstep( z.zagBar, lookback ) )
									AnnotateBar( "D", z.zagBar, true, Color.Red );
								if (BearishHarami[z.zagBar])
									AnnotateBar( "H", z.zagBar, true, Color.Red );
								if (BearishEngulfing[z.zagBar])
									AnnotateBar( "E", z.zagBar, true, Color.Red );

								if( Upstep( z.zagBar, lookback ) )
									AnnotateBar( "U", z.zagBar, false, Color.Blue );
								if (BullishHarami[z.zagBar])
									AnnotateBar( "H", z.zagBar, false, Color.Blue );
								if (BullishEngulfing[z.zagBar])
									AnnotateBar( "E", z.zagBar, false, Color.Blue );
							}
						}
					}
				}
			}
		}
	}

	public class XEvent
	{
		public int Bar {get; set; }
		public int Type {get; set; }
		public double Price {get; set; }

		public XEvent( int bar, int type ) { Bar = bar; Type = type; }
		public XEvent( int bar, int type, double price ) { Bar = bar; Type = type; Price = price; }
	}

	public enum Wave {W1, W2, W3}

	public class ZigZag
	{
		public int barDetected { get; set; }
		public bool isMoveUp { get; set; }
		public int zigBar { get; set; }
		public int zagBar { get; set; }
		public double inPrice { get; set; }
		public double outPrice { get; set; }
		public double magnitude { get; set; }

		public Wave wave { get; set; }
		public int leg3Count { get; set; }

		public ZigZag(int barDetected, bool isMoveUp, int zigBar, int zagBar, double inPrice, double outPrice, double magnitude)
		{
			this.barDetected = barDetected;
			this.isMoveUp = isMoveUp;
			this.zigBar = zigBar;
			this.zagBar = zagBar;
			this.inPrice = inPrice;
			this.outPrice = outPrice;
			this.magnitude = magnitude;
			this.leg3Count = 0;
		}
	}

	public class ZZBuilder
	{
		private bool Initialized = false;
		public Bars bars { get; private set; }
		public double percent { get; private set; }
		public List<ZigZag> ZigZags { get; private set; }

		public ZZBuilder( Bars b, double pct )
		{
			this.bars = b;
			this.percent = pct;

			BuildZZHiLo();
			//BuildZZ();
		}

		private void BuildZZHiLo()
		{
			try {
				DataSeries zz = SVEHLZZperc.Series(bars,percent,14,3,SVEHLZZperc_Type.Percent);
				List<XEvent> lstX = new List<XEvent>();
				lstX.Add( new XEvent( 0, 0 ) );

				for(int bar = 1; bar < bars.Count; bar++)
				{
					if( bars.High[bar - 1] < zz[bar - 1] && bars.High[bar] > zz[bar] ) {
						lstX.Add( new XEvent(bar, 1) );
					}

					if( bars.Low[bar - 1] > zz[bar - 1] && bars.Low[bar] < zz[bar] ) {
						lstX.Add( new XEvent(bar, -1) );
					}
				}

				for(int bar = 0; bar < bars.Count; bar++)
				{
					for( int i = 0; i < lstX.Count; i++ ) {
						if( i == 0 ) continue;
						XEvent e = lstX[i];
						if( e.Bar == bar ) {
							int prevEventBar = lstX[i - 1].Bar;
							int step = bar-prevEventBar;
							if( e.Type == 1 ) {
								double Trough = Lowest.Value( bar, bars.Low, step );
								e.Price = Trough;
								e.Bar = (int)LowestBar.Value( bar, bars.Low, step );
							}
							else if( e.Type == -1 ) {
								double Peak = Highest.Value( bar, bars.High, step );
								e.Price = Peak;
								e.Bar = (int)HighestBar.Value( bar, bars.High, step );
							}

							break;
						}
					}
				}

				List<ZigZag> lst = new List<ZigZag>();
				double inPrice = 0, outPrice = 0, magnitude = 0;
				int barDetected = 0, zigBar = 0, zagBar = 0;
				bool detected = false;

				for(int bar = 1; bar < bars.Count; bar++)
				{
					detected = false;
					XEvent e = lstX[0];
					XEvent prev = lstX[0];

					for( int i = 0; i < lstX.Count; i++ ) {
						if( i == 0 ) continue;
						e = lstX[i];
						prev = lstX[i - 1];
						if( e.Bar == bar ) {
							detected = true; break;
						}
					}

					if( detected ) {

						bool isMoveUp = (e.Type == 1);
						if( isMoveUp ) {
							zigBar = prev.Bar; zagBar = e.Bar; inPrice = prev.Price; outPrice = e.Price;
						}
						else {
							zigBar = prev.Bar; zagBar = e.Bar; inPrice = prev.Price; outPrice = e.Price;
						}
						magnitude = Math.Abs( inPrice - outPrice );

						lst.Add( new ZigZag( bar, isMoveUp, zigBar, zagBar, inPrice, outPrice, magnitude ) );
					}
				}

				ZigZags = lst;
				Initialized = true;
			}
			catch {
			}
		}

		[Obsolete]
		private void BuildZZ()
		{
			try
			{
				PeakTroughMode mode = WealthLab.Indicators.PeakTroughMode.Percent;
				PeakBar pb = PeakBar.Series(bars.Close,percent,mode);
				TroughBar tb = TroughBar.Series(bars.Close,percent,mode);
				Trough tr = Trough.Series(bars.Close,percent,mode);
				Peak pk = Peak.Series(bars.Close,percent,mode);
				List<ZigZag> lst = new List<ZigZag>();
				double t1 = 0, p1 = 0, inPrice, outPrice = 0, magnitude = 0;
				int tb1 = 0, pb1, barDetected = 0, zigBar = 0, zagBar = 0;
				bool detected = false;

				for(int bar = 1; bar < bars.Count; bar++)
				{
					detected = false;

					t1 = tr[bar];
					tb1 = (int)tb[bar];
					if (tb1 == -1) continue;

					p1 = pk[bar];
					pb1 = (int)pb[bar];
					if (pb1 == -1) continue;

					if( tb[bar] > tb[bar-1] && pb[bar] > -1){
						detected = true;
					}

					if( pb[bar] > pb[bar-1] && tb[bar] > -1 ){
						detected = true;
					}

					if( detected ) {

						bool isMoveUp = (tb1 < pb1);
						magnitude = Math.Abs( bars.High[pb1] - bars.Low[tb1] );

						if( isMoveUp ) {
							zigBar = tb1; zagBar = pb1; inPrice = t1; outPrice = p1;
						}
						else {
							zigBar = pb1; zagBar = tb1; inPrice = p1; outPrice = t1;
						}

						lst.Add( new ZigZag( bar, isMoveUp, zigBar, zagBar, inPrice, outPrice, magnitude ) );
					}
				}

				ZigZags = lst;
				Initialized = true;
			}
			catch {
			}
		}
	}
}
