TASC 2012-03 | Swami Stochastics Heat Map (Ehlers)

Modified on 2012/02/08 05:12 by Administrator — Categorized as: TASC Traders Tips

Traders' Tip text

Wealth-Lab 6’s C# translation of the EL code is shown below and is conveniently available for customers through the Strategy Download feature. Discretionary traders using technical analysis could find some value using the Swami Stochastics heat map to determine entry points in ongoing trends. “While no Swami expert am I” (think of Yoda when reading that), it’s my perception that main trend may be better identified using higher scales, like Weekly. Then look to the Swami heatmap at a lower scale, like Daily, to enter a trade when a countertrend move begins to dissipate, i.e., when the green starts appearing at the bottom of the Swami pane and correlates to a break in an identifiable resistance area, as shown in Figure 1.

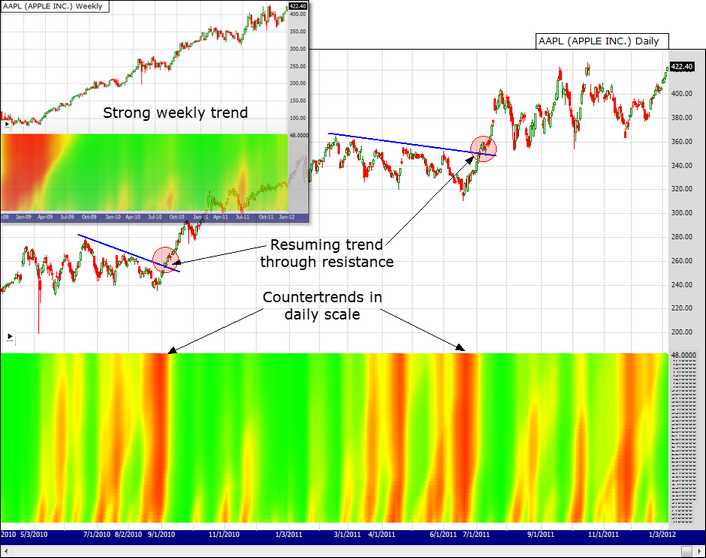

Figure 1. Apple Inc. Daily and Weekly (inset) Swami Stochastics showing trade opportunities after consolidative pullbacks.


Tip: Don't copy! Instead, use the Strategy Download feature in the Strategy Explorer (Ctrl+O)

using System;
using System.Collections.Generic;
using System.Text;
using System.Drawing;
using WealthLab;

namespace WealthLab.Strategies { public class SwamiStochastics : WealthScript { StrategyParameter _plotWidth; public SwamiStochastics() { _plotWidth = CreateParameter("Plot Width", 6, 2, 10, 1); } public class ArrayHolder { internal double Stoc, Num, Denom; } public void SwamiStochHeatMap(DataSeries ds, int plotThickness) { int r = 0; int g = 0; int b = 0; string s = ds.Description + ")"; DataSeries swStoch = new DataSeries(ds, "SwamiStoch(" + s); DataSeries[] swamistoch = new DataSeries[49]; // Initialize array ArrayHolder[] ah = new ArrayHolder[49]; for( int n = 4; n < 49; n++ ) ah[n] = new ArrayHolder(); // Create and plot the heatmap series (change bar colors later) HideVolume(); HidePaneLines(); ChartPane swPane = CreatePane(50, false, false ); for( int n = 4; n < 49; n++ ) { swamistoch[n] = swStoch + n; swamistoch[n].Description = "SwamiSto." + n.ToString(); PlotSeries(swPane, swamistoch[n], Color.LightGray, LineStyle.Solid, plotThickness); } for(int bar = 48; bar < Bars.Count; bar++) { double num2, denom2, stoch2;

for (int n = 4; n < 49; n++) { num2 = ah[n].Num; denom2 = ah[n].Denom; stoch2 = ah[n].Stoc; double hh = 0; double ll = 1e10; for (int j = 0; j < n; j++) { if (ds[bar - j] > hh) hh = ds[bar - j]; if (ds[bar - j] < ll) ll = ds[bar - j]; } ah[n].Num = 0.5 * (ds[bar] - ll) + 0.5 * num2; ah[n].Denom = 0.5 * (hh - ll) + 0.5 * denom2; if (ah[n].Denom != 0) { ah[n].Stoc = 0.2 * (ah[n].Num / ah[n].Denom) + 0.8 * stoch2; } if (ah[n].Stoc >= 0.5) { r = Convert.ToInt32(255 * (2 - 2 * ah[n].Stoc)); g = 255; } else { r = 255; g = Convert.ToInt32(255 * 2 * ah[n].Stoc); } SetSeriesBarColor(bar, swamistoch[n], Color.FromArgb(r, g, b)); } } } protected override void Execute() { SwamiStochHeatMap(Close, _plotWidth.ValueInt); } } }
