Syntax
public void WinLossBackground( int mode )
Parameter Description
| mode |
mode selects the color scheme: 0 standard (light red, light green), 1 strong (red, light red, yellow, light green green)
|
Description
Originally created for WL4 by Dr.Koch and coded for WL5 by thodder.

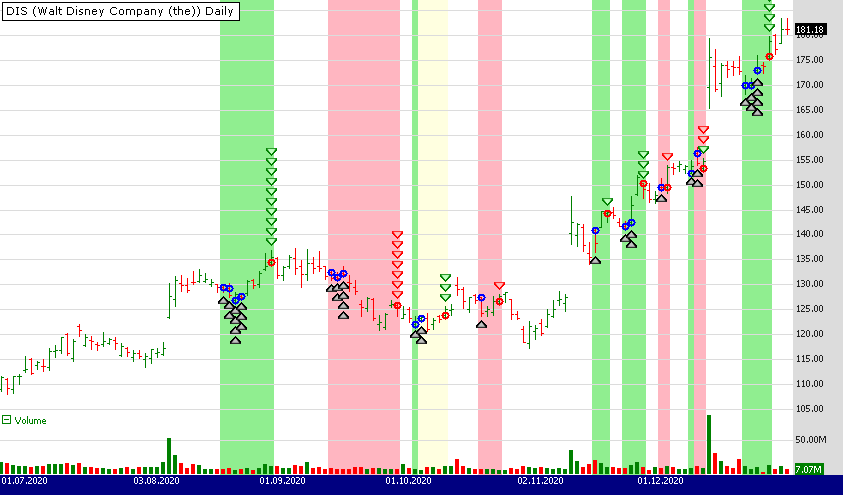

Paint background according to profit. Handles overlapping positions.
With overlapping positions the worst trade determines the background color
trades better than 0.5 percent are marked green
trades worse than -0.5 percent are marked red
the trades between -0.5% and +0.5 % are marked yellow
in mode 1 trades better/worse than +5%/-5% are marked with a
stronger green/red color
Usage
Add a call to WinLossBackground(
mode) after the main (trading) loop i.e. at the end of your Strategy.
Example
Here is an example illustrating how to use the method in your Strategy code:
using System;
using System.Text;
using WealthLab;
using Community.Components;
namespace WealthLab.Strategies
{
public class MyStrategy : WealthScript
{
protected override void Execute()
{
for(int bar = 20; bar < Bars.Count; bar++)
{
if (IsLastPositionActive)
{
//code your exit rules here
}
else
{
//code your entry rules here
}
}
Community.Components.Utility u = new Community.Components.Utility(this);
// Call the method
u.WinLossBackground(1);
}
}
}
